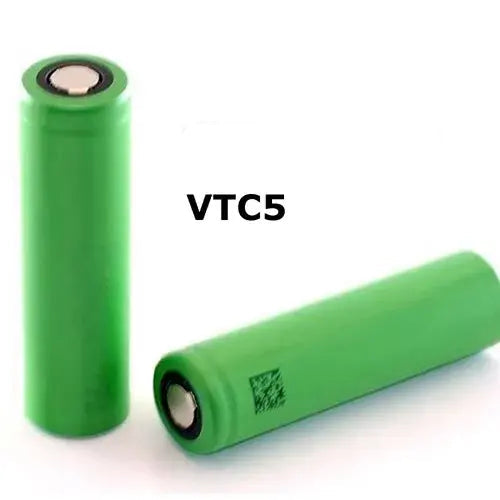

Sony VTC5 2600mAh 18650 Battery for E-Cigarette

• Optimal capacity: 2600mAh nominal for daily autonomy at medium power
• Discharge current: 20A continuous, ideal for power up to 50W (single) or 100W (double)
• Lithium-ion chemistry: High-quality Sony IMR technology
• Flat Pin: Universal compatibility with all 18650 devices
• Charging cycles: 300-500 full cycles before significant degradation
• Integrated protections: Against overload, overdischarge and short circuit
• Certifications: Complies with international safety standards
• Lightweight: 44-46g for maximum portability
• Sony Reliability: World-leading battery brand

First use:

1. Remove the battery from the packaging and check the integrity of the wrapper (green outer casing)
2. Fully charge the battery with a dedicated external charger at 1.5-2A
3. Insert the battery into the box mod, respecting the polarity (positive pole facing upwards).
4. Start with moderate power (30-40W) and gradually increase according to your preferences

Daily use:

• Single electronic boxes: Optimal between 40-60W for 5-7 hours of battery life
• Double electronic boxes: Up to 100W with 4-5 hours of battery life
• Single mechanical boxes: Minimum resistances 0.30Ω (20A limit)
• Double mechanical boxes: Minimum resistances 0.18Ω in parallel configuration

Correct charging:

• Always use an external charger (Nitecore, Xtar, Efest)
• Set charging current to 1.5-2A (standard) or max 4A (fast charging)
• Never leave the battery unattended while charging
• Recharge in a safe place, away from flammable materials
• Do not charge via the box mod's USB port

Maintenance:

• Regularly check the integrity of the wrapper (green wrapper)
• Clean the poles with a dry cloth every 2-3 weeks
• Store in protective case when not in use
• Do not expose to extreme temperatures (below 0°C or above 60°C)
• Replace the battery after 300-500 cycles or if you notice a drop in performance

• ✓ Reliable battery life: 2600mAh for a full day at medium power (40-60W)
• ✓ 20A continuous: Safe discharge current for regulated electronic boxes
• ✓ Sony Quality: World leading brand in lithium-ion batteries
• ✓ Versatility: Perfect for daily MTL and DTL use at moderate wattages
• ✓ Certified security: Integrated protections and compliance with international standards
• ✓ Long-lasting: 300-500 full charge cycles (1-2 years of use)
• ✓ Value for money: Safe investment for reliable performance
• ✓ Universal Compatibility: Flat pin fits all 18650 devices
• ✓ Consistent performance: Stable power delivery up to 20% remaining charge
• ✓ Immediate availability: In stock in our physical and online store in Fabriano

• Model: Sony US18650VTC5
• Size: 18650 (18mm diameter × 65mm length)
• Rated capacity: 2600mAh
• Typical capacity: 2700mAh
• Rated voltage: 3.6V
• Maximum charging voltage: 4.2V ± 0.05V
• Minimum discharge voltage: 2.0V
• Standard charging current: 1.5A (1200mA recommended)
• Maximum charging current: 4A
• Continuous discharge current: 20A (30A pulsed max 80°C)
• Maximum discharge current: 30A (pulsed, max 6 seconds)
• Internal resistance: ≤ 20mΩ
• Charging temperature: 0°C ~ 60°C
• Discharge temperature: -20°C ~ 60°C
• Storage temperature: -20°C ~ 25°C (ideal)
• Weight: 44-46g
• Pin Type: Flat Top
• Chemistry: IMR (Lithium Manganese Rechargeable)
• Life cycles: 300-500 complete cycles (80% residual capacity)
• Protections: None (battery not protected - requires circuit in box)

Electronic Box Mod (single battery):

• Geekvape Aegis Solo / Solo 2 / Solo 3 (up to 80W)
• Vaporesso Luxe 80 / GTX One (up to 80W)
• Voopoo Drag S/X (up to 80W)
• Smok Priv N19 (up to 80W)
• Eleaf iStick Pico (up to 75W)

Electronic Box Mod (dual battery):

• Geekvape Aegis Legend / Legend 2 (up to 160W)
• Vaporesso Luxe XR Max / Gen (up to 160W)
• Voopoo Drag 2 / 3 (up to 160W)
• Smok Morph 219 (up to 160W)
• GeekVape Zeus (up to 160W)

Mechanical Box Mods:

• Single mechanical tubes (minimum resistance 0.30Ω)
• Parallel mechanical boxes (minimum resistance 0.18Ω)
• Not recommended for serious mechanical boxes or very low resistances

Compatibility Notes:

• Always check that your device accepts flat pin 18650 batteries.
• For dual battery boxes, always use 2 VTC5s of the same batch and charge level
• Do not mix VTC5 with other models (VTC6, VTC5A, other brands)
• For power outputs above 80W with a single battery, consider the VTC6 or dual battery box

What is the difference between VTC5, VTC6 and VTC5A?
The VTC5 offers 2600mAh with 20A discharge, ideal for everyday use at medium power (40-60W). The VTC6 has 3000mAh with 30A for longer runtime, while the VTC5A has 2600mAh but with 35A discharge, perfect for high-power mechanical boxes.

How do I safely charge the Sony VTC5 battery?
Always use a dedicated external charger (do not charge via USB in the box). Set the charging current to 1.5-2A (standard) or a maximum of 4A. Never leave the battery unattended while charging. Charge in a safe place away from flammable materials.

How long does a Sony VTC5 battery last?
With normal use (40-60W), the VTC5 lasts approximately 300-500 charge cycles (1-2 years). Daily battery life depends on the wattage: at 40W about 6-7 hours, at 50W about 5-6 hours, at 60W about 4-5 hours.

Can I use the VTC5 on mechanical boxes?
Yes, but with limitations. The VTC5 supports up to 20A of continuous discharge. On a single mechanical box, you can safely go down to 0.30Ω. For lower resistances (under 0.25Ω), use the VTC5A (35A) or VTC6 (30A).

How do I recognize an authentic Sony VTC5 battery?
Authentic Sony VTC5 batteries have a bright green wrapper with a clear "VTC5" print, a flat pin, a readable QR code, a weight of approximately 44-46g, and a security hologram. Be wary of low prices or unauthorized sellers. Always buy from certified retailers like MoarSvapo.

How long does it take to charge the VTC5?
With a 1.5A charger (standard): approximately 1.5-2 hours. With a 2A charger: approximately 1-1.5 hours. With a 4A charger (fast charging): approximately 40-50 minutes. We recommend charging at 1.5-2A to preserve battery life over time.

Can I use the VTC5 in a dual battery box?
Yes, the VTC5 is perfect for dual-battery boxes up to 100W. Make sure you always use batteries of the same brand, model, and charge level. Don't mix old and new batteries. Always charge the batteries together in the same charger.
